Vertical Automatic SMT Terminal Printed Circuit Board Insertion Machine IST-3800 With Electronic Component Plug Pick And Place Equipment
Product Introduction
Vertical insertion machine is a kind of automatic equipment in the production of electronic equipment. It is mainly used to insert electronic component or connectors into printed circuit board (PCB)
Working principle: the vertical insertion machine is driven by servo motor to realize 360 ° insertion angle, which can carry out high-speed and high-density plug-in. It is equipped with automatic detection interpolation function, can be inserted in the error automatically detect and interpolation.
In addition, the vertical insert machine machine also has automatic up and down board track system, can cooperate with the up and down board machine to achieve automatic process.
Product Specification
| IST-3800 |
| Theoretical velocity | 24000 parts per hour |
| Plug-in direction | 0-360 degree increment 1 degree |
| Lead span | Double spacing 2.5/3.5/5.0/8.5 2.5/5.0/7.5/10.0 optional |
| Substrate size | 390mm*350mm(Larger sizes can be customized) |
| Substrate thickness | 0.79-2.36mm |
| Component specification | The maximum height is 23mm and the maximum diameter is 13mm |
| Component type | Capacitor/transistor/transistor/LED lamp/keystroke switch/resistor /coil/potentiometer / |
| Length of component lead shearing foot | 1.2mm-2.2mm(adjustable) |
| Component lead bend foot angle | 5-35 degrees(adjustable) |
| Number of material stations | 8/10/12/20/40(optional) |
| Equipment shape size(lengthX width X height) | 1800mmx 1700mmx 1900mm |
| Material station size | 1700*1450*1400(without independent material stations on 8/10/12) |
| Machine weight | 2100KG |
| Use power/power | 50/60HZ,2.0KVA1.6KW(节能型energy-saving type) |
| System protection | Built-in soft protection |
| Use voltage/gas consumption | 0.6-0.8Mpa/0.3 cubic/minute |
| Use of ambient temperature | 5-25 degrees |
| Machine noise | 65 decibels |
| Hole position correction mode | Machinevision system,multi-point MARK vision correction |
| Drive system | AC servo,AC motor |
| Data input mode | USB interface input(EXCEL document fomat) |
| Control system | Chinese operating interface (Wn7 system control platfom)liquid crystal display |
| Element density | 1mm spacing between component bodies,distance between patch elements and holes should not be less than 3mm |
| Circuit board transportation mode | Automatic upper and lower board left to right to left |
| Display | Front and rear |
Product details:

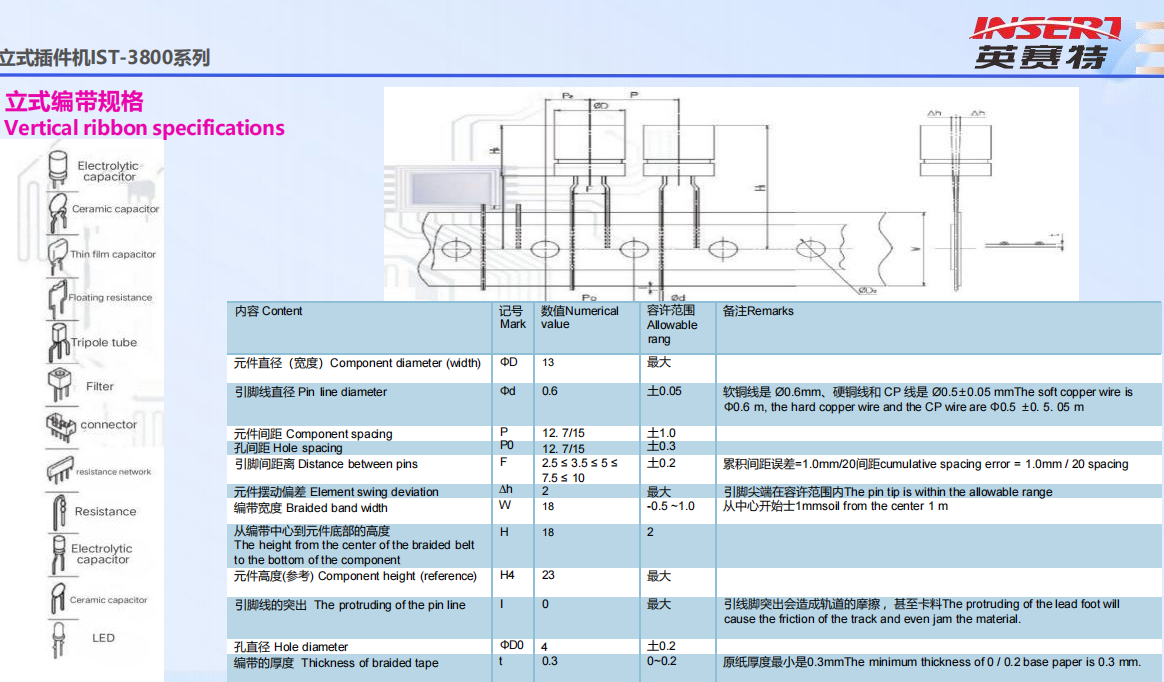

Min tim capactor,roaina rosistance,Tripole tube,Fiter,connector, resistance network,Resistance,Electrolytic,capacitor,Ceramie capacitor,LED
Applications:
Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
