Pcb Handling Double Rails Conveyor smt Pcb Double Rail conveyor SMT dual track Conveyor For Smt Production Line pcb Inspection Conveyors
Description

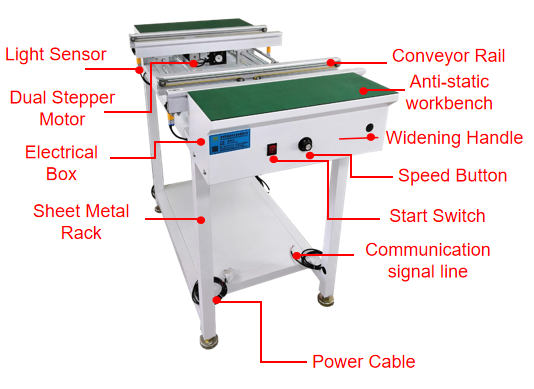

The precision screw rod adjusts the width and narrowness to ensure that the transport guide rails are parallel to each other;
Adopt professional wear-resistant and anti-static flat belt, special thickened aluminum profile guide rail to ensure smooth connection, guide rail unchanged, and stable transportation;
Standard equipped with signal lines, which can be connected with other equipment online The connecting table with different lengths of guide rails can be made according to customer requirements Equipped with anti-static rubber to better prevent static electricity;
The transmission motor adopts an adjustable 4248 lengthened stepper motor, The photoelectric switch adopts Hufeng circular photoelectric, durable, The flat belt transmission wheel is driven by double bearings, which ensures stable transmission and does not damage the belt.
The two ends of the guide rail of the connection table are processed into a figure-eight shape to enter the PCB, so that the PCB enters and exits the connection table smoothly without jitter. The width is adjusted by double sets of screw rods, Dual-track independent control, easy to operate,
Product Available,
Complete specifications, support non-standard customization
Optional specifications: 500mm /600mm /800mm /1000mm
Product Specification
| Dimensions | 600*1150*900mm |
| PCB board width | 1, 2 rails, 4, 3 rails respectively adjust the width 50-300 mm (50-600mm) |
| Transport height | 900±20mm |
| PCB transport direction | L-R(R-L) |
| PCB shipping speed | Transmission speed adjustable 0~2000mm |
| Power supply | AC220V1P 50/60Hz |
| Height distance between belt and adjusting seat | 80mm |
| Power consumption | Approx.50W |
| Track length | 600/800/100/1200/1500mm |
| Control method | Electronic board control + stepper drive |
| Weight | About 100KG |
| Communication Interface | Cable |
| Double track | 1, 4 are fixed sides; 2, 3 are movable sides |
| Transmission method | Stepper Motor Aluminum Pulley Direct Drive Belt |
Product details
Applications:

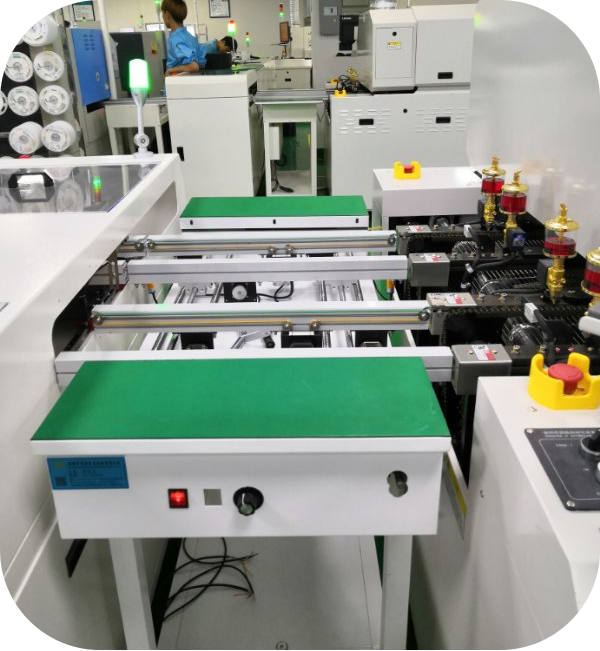

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
